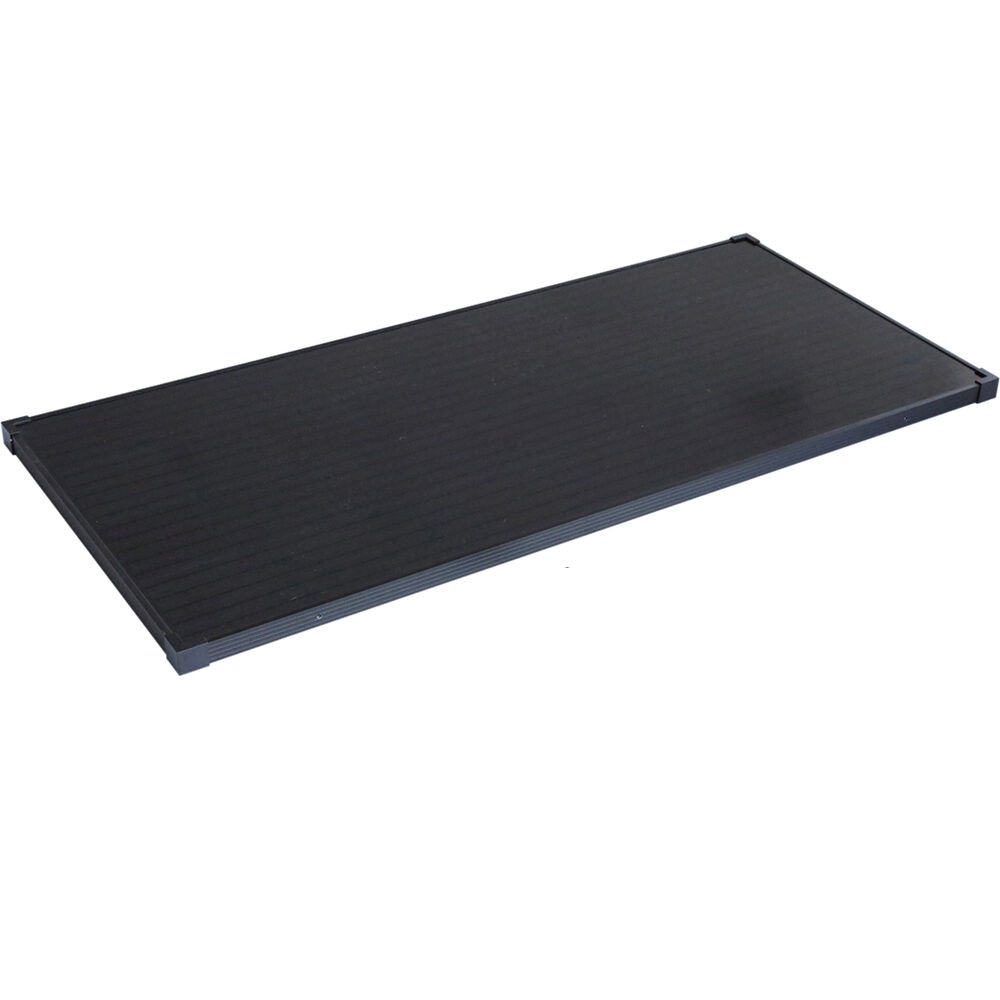

Photovoltaic (PV) Solar Panel. 160W power.
Application
Ideal for use with these products:
Features
- Durable
- Corrosion-resistant aluminum frame allows extended outdoor use; the panels can last for decades.
- Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance.
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets.
- Corner protectors to make corners smoother and for improved impact resistance to better avoid frame cracking.
- Versatile
- Can be used for many different applications.
- Compatible with ground mounts as well as different mounts such as Pole Mounts and Tilt Mounts.
- Compatible with on-grid and off-grid inverters.
- Installation Ready
- Pre-drilled holes on the back of the panel allow for fast mounting and securing.
- Corner protectors allow for safer solar panel handling during installation; other panels may have sharp corners.
Mounting
This panel is compatible with our heavy-duty pole mount.

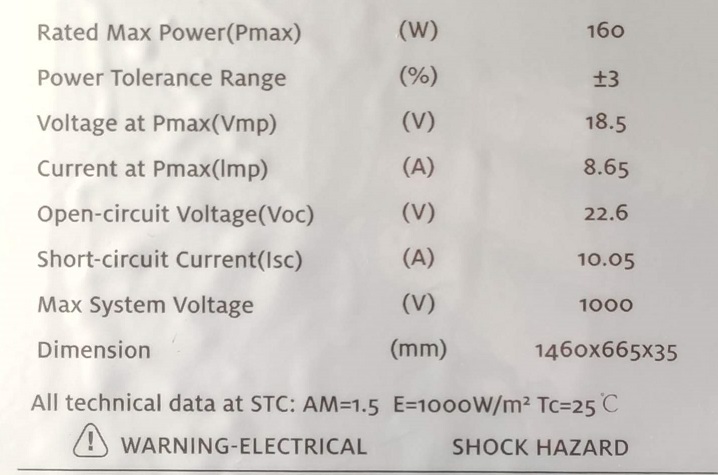

Specifications
| Maximum Power | 160 W
|
|---|
| Technology | High Efficiency Mono Crystalline
|
|---|
| Optimum Operating Voltage (Vmp) | 18.5 V
|
|---|
| Dimensions | 1460 x 665 x 35 mm
|
|---|
| Open-Circuit Voltage (Voc) | 22.6 V
|
|---|
| Optimum Operating Current (Imp) | 8.85 A
|
|---|
| Short-Circuit Current (Isc) | 10.05 A
|
|---|
| Bypass diodes | Yes: Allowing panels to be added in series.
|
|---|
| Cable length | 2 m
|
|---|
| Cable connectors | 2 x MC4
|
|---|
| Weight | 10.5 kg
|
|---|
| Operating Temperature | -40 ~ +85 °C
|
|---|
